ESPESIFIKASYON FIZIK |
||||||
|
Voltaj nominal Kapasite nominal (10HR) |
12V 120Ah |
|
||||
|
Dimansyon |
Longè Lajè Wotè veso Total Wotè |
407±2mm (16.02 pous) 174±2mm (6.85 pous) 238±2mm (9.37 pous) 238±2mm (9.37 pous) |
||||
|
Pwa |
Apeprè. 35.5Kg ±3% (78.26lbs) |
|||||
|
Tèminal Creole |
Tèminal boulon ak nwa Kalite boulon: M6 |
|||||
|
|
Shimastu Gel seri Jèl Batri yo fabrike ak separateur espesyal ak jèl silica imobilizasyon elektwolit la andedan batri a, li se pafè pou souvan siklik gwo twou san fon egzeyat oswa aplikasyon pou sibstiti anba anviwònman piman bouk, e li gen yon lavi sèvis long. Karakteristik 1. Espesyal konsepsyon plak polè, ki asire yon lavi chaj k ap flote ki fèt nan 15 ane nan 25 degre (770F ) 2. Distribisyon aktyèl egalize, materyèl aktif la pa fasil pou tonbe 3. Segondè efikasite recombination gaz 4. Bon pèfòmans rezistans egzeyat gwo twou san fon 5. Pa gen fenomèn delaminasyon nan elektwolit la 6. fabrike ak wo-porosite |
|||||
|
SPESIFIKASYON ELEKTRIK |
||||||
|
Karakteristik |

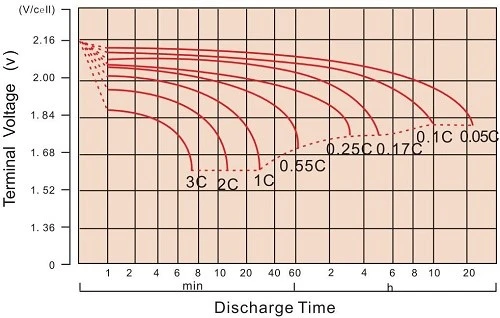

Koub egzeyat @ 25 degre (77 degre F) |
|||||
|
Kapasite |
10 èdtan pousantaj (12A) 5 èdtan pousantaj (20.4A) 3 èdtan pousantaj (30A) 1 èdtan pousantaj (66A) |
120Ah 102Ah 90Ah 66Ah |
|
|||
|
Kapasite afekte pa tanperati |
40 degre (1040F） 25 degre (770F） 0 degre （320F） |
102% 100% 85% |
||||
|
Max Egzeyat aktyèl |
1200A (5 Sek) |
|||||
|
Kout Awondisman Kouran |
2220A |
|||||
|
Rezistans Entèn |
Batri plen chaje (25 degre, 770F)5.2mΩ |
|||||
|
Konstan Voltage Chaje |
Sik |
Kouran inisyal chaje mwens pase 30A Voltage 14.1 ~ 14.4V nan 25 degre (770F ) Koyefisyan Tanperati -30mV / degre |
||||
|
Kanpe |
Pa gen limit sou aktyèl chaj inisyal Voltage 13.5 ~ 13.8V nan 25 degre (770F ) Koyefisyan Tanperati -20mV / degre |
|||||
|
KONSTAN DECHARGE KOUNYE A @ 25 degre |
|||||||||
|
FV/TAN |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
280.7 |
220.1 |
131.3 |
74.4 |
34.0 |
22.7 |
15.3 |
12.7 |
6.62 |
|
1.65V |
258.1 |
210.4 |
126.1 |
71.6 |
32.9 |
22.1 |
15.1 |
12.5 |
6.53 |
|
1.70V |
237.6 |
197.1 |
120.6 |
68.9 |
32.0 |
21.5 |
14.8 |
12.3 |
6.44 |
|
1.75V |
217.5 |
183.5 |
115.2 |
66.0 |
31.0 |
21.0 |
14.6 |
12.2 |
6.36 |
|
1.80V |
196.9 |
169.4 |
110.2 |
63.6 |
30.0 |
20.4 |
14.4 |
12.0 |
6.30 |
|
KONSTAN PUISSAN DECHAJE RAT WATT POU SELIL@25 degre |
|||||||||
|
FV/TAN |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
464.4 |
384.8 |
238.6 |
139.9 |
64.8 |
43.9 |
30.0 |
25.1 |
13.0 |
|
1.65V |
447.3 |
373.3 |
231.5 |
135.3 |
63.1 |
42.7 |
29.5 |
24.7 |
12.8 |
|
1.70V |
419.3 |
354.8 |
223.5 |
131.0 |
61.6 |
41.8 |
29.1 |
24.3 |
12.7 |
|
1.75V |
390.7 |
335.1 |
215.6 |
126.3 |
60.1 |
40.9 |
28.7 |
24.0 |
12.6 |
|
1.80V |
359.8 |
313.9 |
208.4 |
122.4 |
58.2 |
39.9 |
28.4 |
23.6 |
12.5 |
