ESPESIFIKASYON FIZIK |
||||||
|
Voltaj nominal Kapasite nominal (10HR) |
12V 200Ah |
|
||||
|
Dimansyon |
Longè Lajè Wotè veso Total Wotè |
522±2mm (20.55 pous) 240±2mm (9.45 pous) 219±2mm (8.62 pous) 223±2mm (8.78 pous) |
||||
|
Pwa |
Apeprè. 61.2kg (134.92lbs) |
|||||
|
Tèminal Creole |
Tèminal boulon ak nwa Kalite boulon: M8 |
|||||
|
|

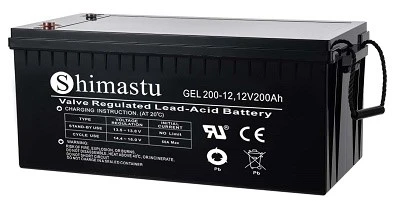

Batri jèl seri Shimastu Gel yo fabrike ak separateur espesyal ak jèl silica ki immobilize elektwolit la andedan batri a, li pafè pou souvan egzeyat siklik gwo twou san fon oswa aplikasyon pou sibstiti anba anviwònman piman bouk, e li gen yon lavi sèvis long. Karakteristik: 1. Espesyal konsepsyon plak polè, ki asire yon lavi chaj k ap flote ki fèt nan 15 ane nan 25 degre (770F ) 2. Distribisyon aktyèl egalize, materyèl aktif la pa fasil pou tonbe 3. Segondè efikasite recombination gaz 4. Bon pèfòmans rezistans egzeyat gwo twou san fon 5. Pa gen fenomèn delaminasyon nan elektwolit la 6. fabrike ak wo-porosite |
|||||
|
SPESIFIKASYON ELEKTRIK |
||||||
|
Karakteristik |

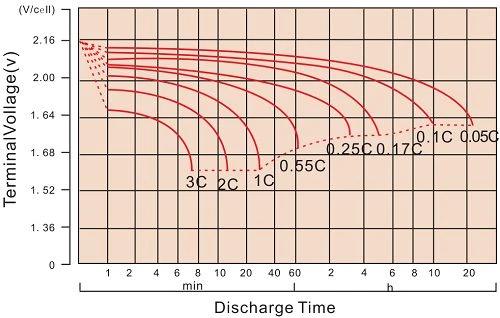

Koub egzeyat @ 25 degre (77 degre F) |
|||||
|
Kapasite |
10 èdtan pousantaj (20A) pousantaj 5 èdtan (34A) 3 èdtan pousantaj (50A) pousantaj 1 èdtan (120A) |
200Ah 170Ah 150Ah 120Ah |
|
|||
|
Kapasite afekte pa tanperati |
40 degre (1040F） 25 degre (770F） 0 degre （320F） |
102% 100% 85% |
||||
|
Max Egzeyat aktyèl |
2000A (5 Sek) |
|||||
|
Kout Awondisman Kouran |
3430A |
|||||
|
Rezistans Entèn |
Batri plen chaje (25 degre, 770F) 4mΩ |
|||||
|
Konstan Voltage Chaje |
Sik |
Kouran inisyal chaje mwens pase 50A Voltage 14.1 ~ 14.4V nan 25 degre (770F ) Koyefisyan Tanperati -30mV / degre |
||||
|
Kanpe |
Pa gen limit sou aktyèl chaj inisyal Voltage 13.5 ~ 13.8V nan 25 degre (770F ) Koyefisyan Tanperati -20mV / degre |
|||||
|
KONSTAN DECHARGE KOUNYE A @ 25 degre |
|||||||||
|
FV/TAN |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
477.1 |
352.1 |
216.7 |
124.0 |
56.6 |
37.9 |
25.4 |
21.2 |
11.0 |
|
1.65V |
438.7 |
336.6 |
208.0 |
119.3 |
54.8 |
36.8 |
25.1 |
20.9 |
10.9 |
|
1.70V |
404.0 |
315.3 |
198.9 |
114.8 |
53.3 |
35.9 |
24.7 |
20.5 |
10.7 |
|
1.75V |
369.8 |
293.6 |
190.0 |
110.0 |
51.7 |
35.0 |
24.4 |
20.3 |
10.6 |
|
1.80V |
334.8 |
271.0 |
181.8 |
106.1 |
50.0 |
34.0 |
24.0 |
20.0 |
10.5 |
|
KONSTAN PUISSAN DECHAJE RAT WATT POU SELIL@25 degre |
|||||||||
|
FV/TAN |
10MIN |
15MIN |
30MIN |
1HR |
3HR |
5HR |
8HR |
10HR |
20HR |
|
1.60V |
789.4 |
615.7 |
397.7 |
233.2 |
108.0 |
73.1 |
50.0 |
41.8 |
21.7 |
|
1.65V |
760.4 |
597.3 |
385.7 |
225.6 |
105.2 |
71.2 |
49.1 |
41.1 |
21.4 |
|
1.70V |
712.9 |
567.7 |
372.4 |
218.3 |
102.7 |
69.6 |
48.5 |
40.6 |
21.1 |
|
1.75V |
664.3 |
536.3 |
359.7 |
210.5 |
100.2 |
68.1 |
47.9 |
40.0 |
21.0 |
|
1.80V |
611.7 |
502.2 |
347.2 |
204.0 |
97.1 |
66.5 |
47.3 |
39.3 |
20.8 |
